TECHNICAL DETAILS

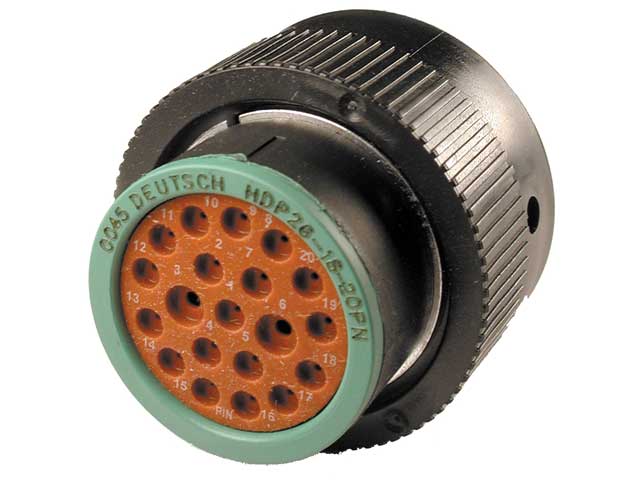

• Part Number:HDP26-18-20PN
• Series:HDP20 Series
• Insulation:(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
• Wire Size:14, 16, 18, 20, 22
• Keyed:No
• Color:Black
• Material:Plastic
• Shape:Circular
• Connector Style:Plug
• Cavities:20
• Contact Size:16, 20
• Shell Size:18 shell
• Special Features:Reverse
• Seal Size:N seal
• Current Rating:13, 7.5
• Holds Pin/Socket:Pin
• Flange/In-line/PCB Mount:In-line
